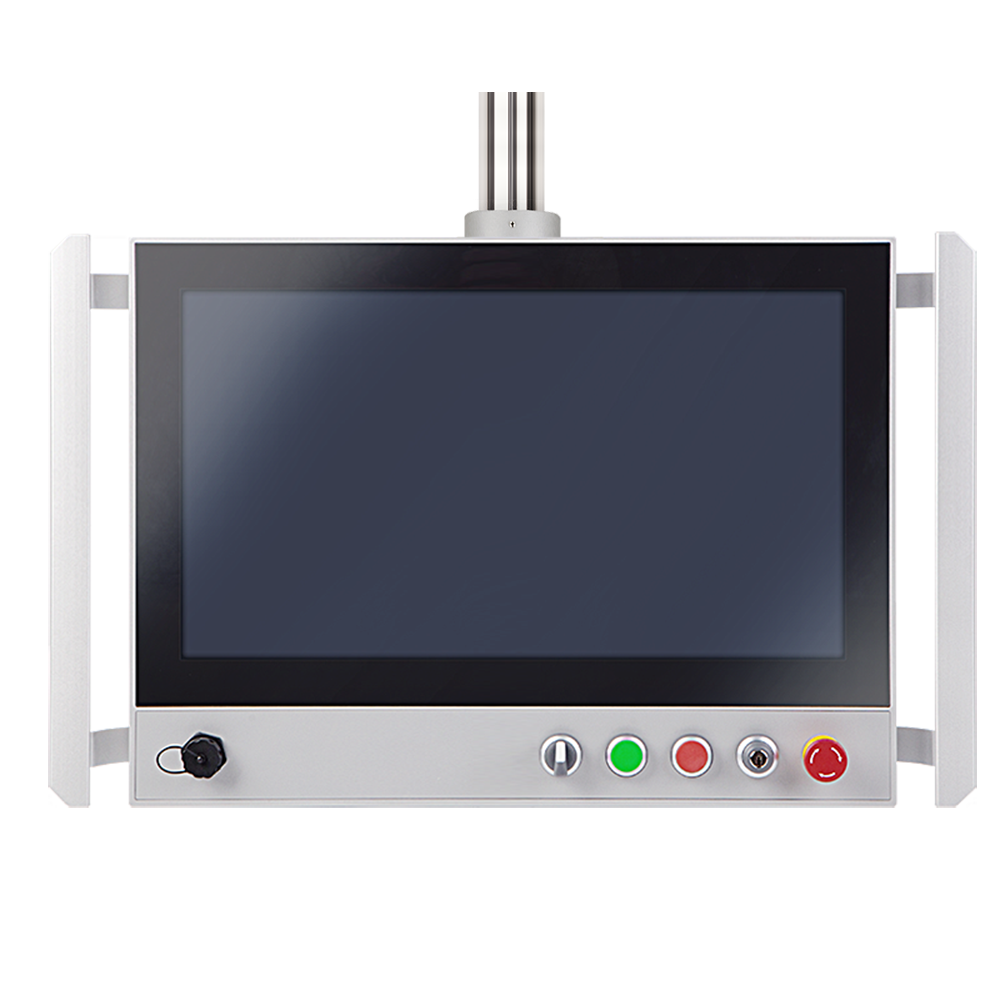

ICP69215 | 21.5″ Painel de Operação
Projected capacitive touch, size of 10.4, 12.1", 15", 17", 18.5", 19" and 21.5", support Intel® 6-11th Gen. Core™ i3/i5/i7, and Celeron® J6412, J1900, 8DI+8DO
Dual Intel GbE LAN Controllers: Two high-speed Ethernet ports for reliable connectivity.
USB Ports: 4 x USB on the front and 1 x USB2.0 on board for USB dongles.
RS232/485: 2 x RS232/485 with auto flow control for versatile communication.
MiniPCIe Slot: Expansion slot for Wi-Fi and 3G/4G modules.
Power Supply: DC 12-24V with overcurrent, overvoltage, and polarity protection.
Mounting Options: Wall-mounted or DIN-Rail installation.
Design: Fully enclosed, fanless, and cable-free.
Wide Temperature Range: Operates from -20°C to 60°C.

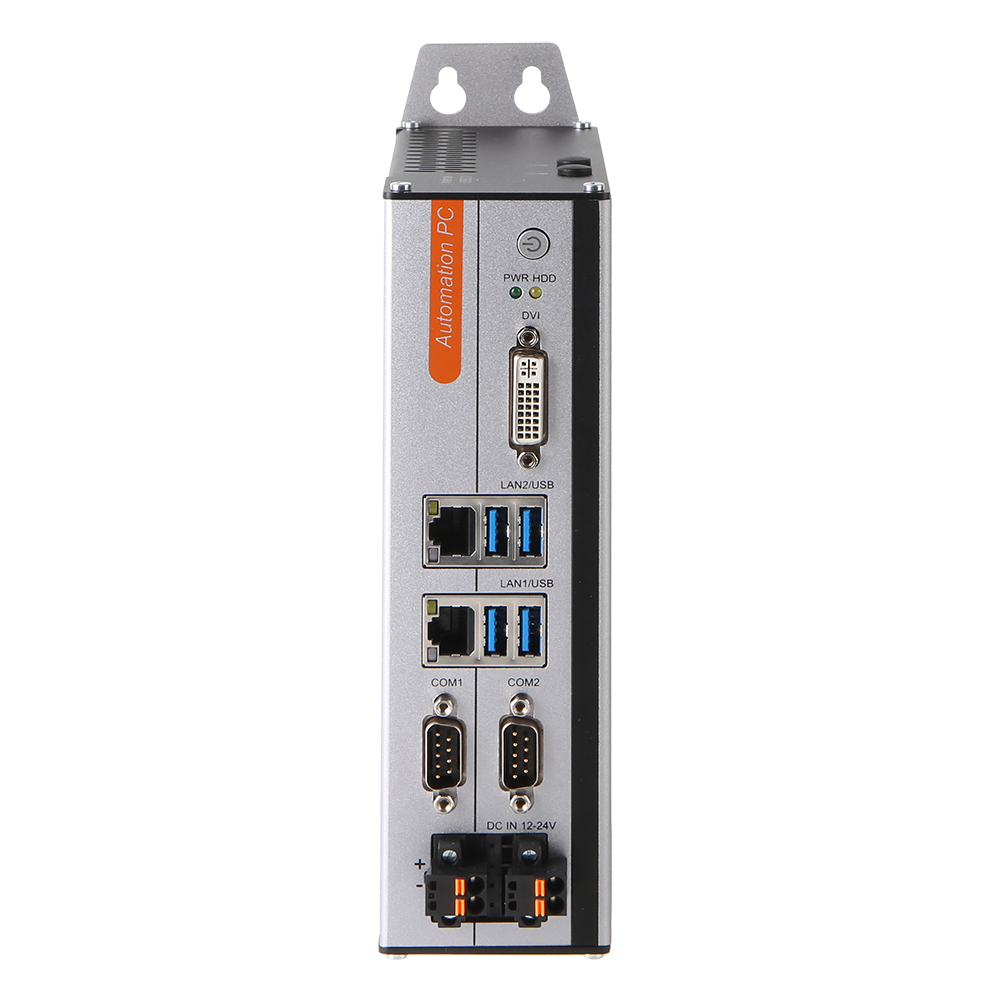

LAN: 2 x Intel GbE LAN controller
USB:
COM: 2 x COM (DB-9), selectable RS232/RS485 (ESD protection: Air ±8KV, Contact ±6KV)
DVI: Supports up to 1920 x 1080 @ 60Hz
Dimensions: 200mm x 154.5mm x 57.6mm
Weight: 1.6Kg

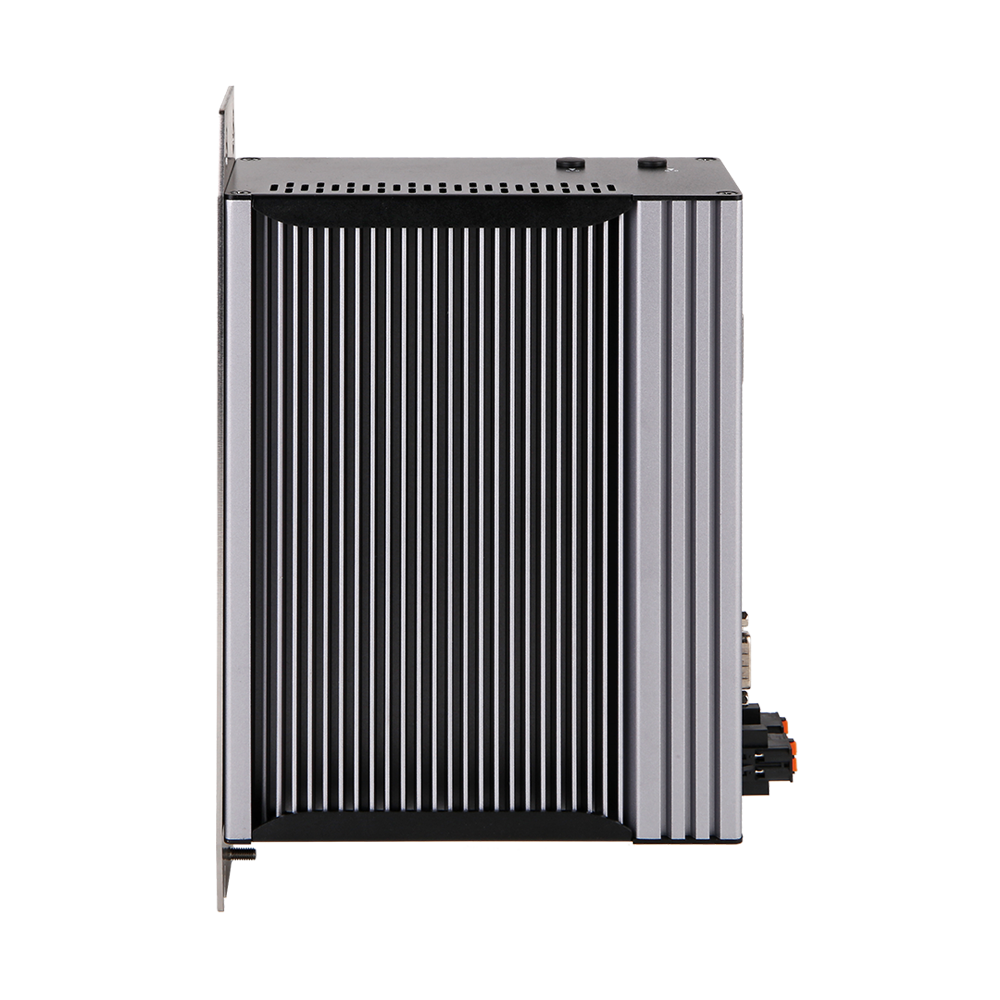

Box Structure: Aluminum-magnesium alloy BOX, Fanless
Mount: Wall-mounted or DIN-Rail
Input Voltage: DC12~24V ±10%, overcurrent, overvoltage, and polarity inverse protection
Microsoft Windows: Windows 7, Windows 7 Embedded, Windows 10 IoT
Linux: Ubuntu, CentOS, Debian
Work Temperature: -20ºC ~ 60ºC (-4℉~140℉) with air flow (SSD)
Storage Temperature: -40ºC ~ 80ºC (-40℉ ~ 176℉) with air flow (SSD)
Relative Humidity: 5~95% (non-condensing)
Vibration: 5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
Shock: 20G peak acceleration (11ms duration) with SSD, Follow IEC60068-2-27
EMC: CE/FCC Class A
