Processor: Supports Intel 6th/7th/8th Generation Core-i, Pentium, Celeron with LGA1151 socket.
Storage: Includes 2× 2.5” SATA bays and 1× mini SATA bay.
Networking: 2× Intel Gigabit LAN ports, 6× RS-232 (COM5, COM6 support RS485), 4× USB3.0, 4× USB2.0.
Expansion Slots: Choice of 1× PCIe x16 slot or 1× PCI slot.
Scalability: Options for 2/4/6 LAN ports, up to 8× RS-232, and 2× CAN Bus.
Power: DC 12~24V input with protection against reverse polarity, overvoltage, and overcurrent.
CPU: Intel® Core™ 6/7/8/9th generation i7/i5/i3/Pentium®/Celeron®, LGA1151
Chipset: Intel H110 Express Chipset
Memory: Supports up to 32GB, DDR4-2400MHz
DIMM: 2 x 204-pin SODIMM
Disk: SATA 2.5″ SSD/HDD, CFAST
Display: VGA + DVI
BIOS: AMI UEFI 64Mbit
SSD: 1× mSATA
HDD: 2× 2.5″ HDD Bay (Max SATA III 6.0 Gb/s)
Expansion PCIe: 1× PCIe x16 slot or 1× 32bits PCI
Expansion MiniPCIe: 2× full-size PCIe with SIM holder
LAN: 2× Intel GbE LAN controller (Up to 6× LAN ports)
USB: 8× USB3.0/2.0/1.1 (including 4× USB 3.0/2.0)
COM: 4× RS-232 (up to 8× RS-232)
Audio: Optional
DI: 8× Isolated DI
DO: 8× Isolated DO
LPT: 1× LPT (optional)
VGA: Up to 1920×1200
DVI: Support 1920×1200
Dual display: Yes (VGA + DVI + HDMI)
HDMI: 1920×1200

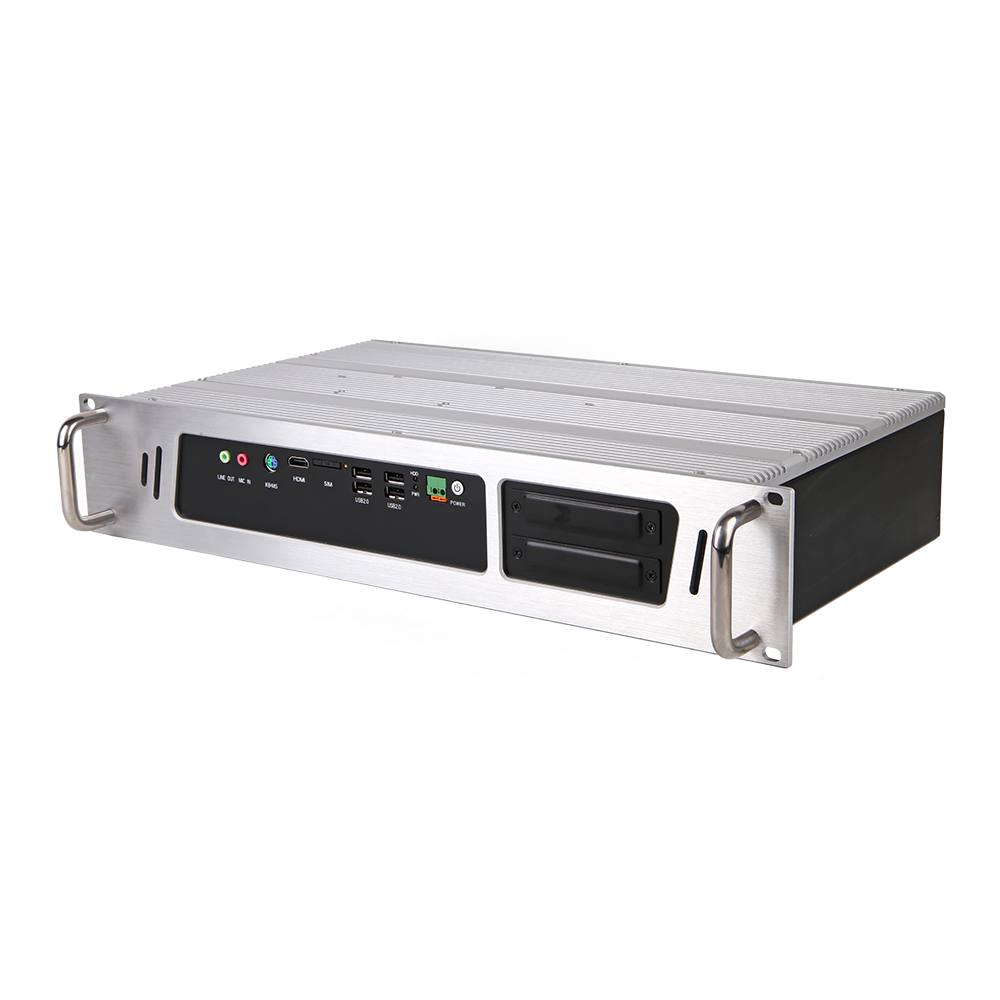

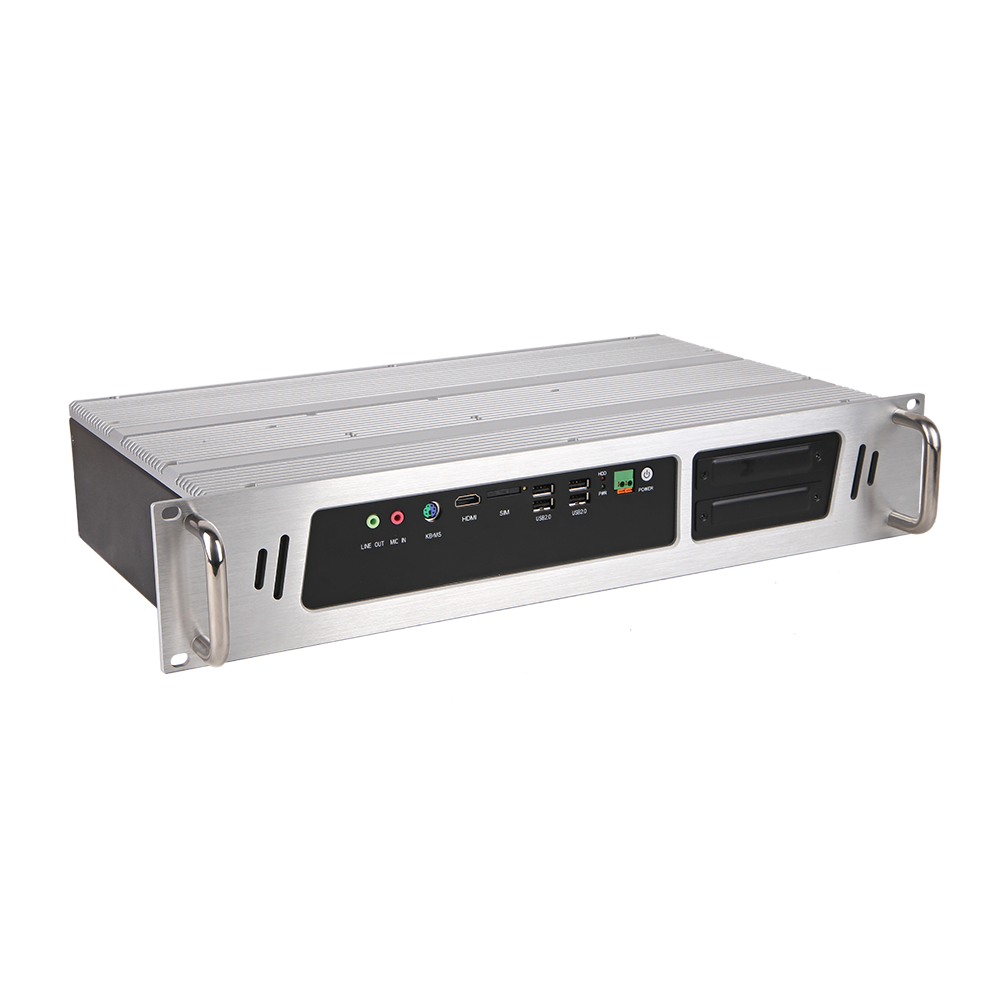

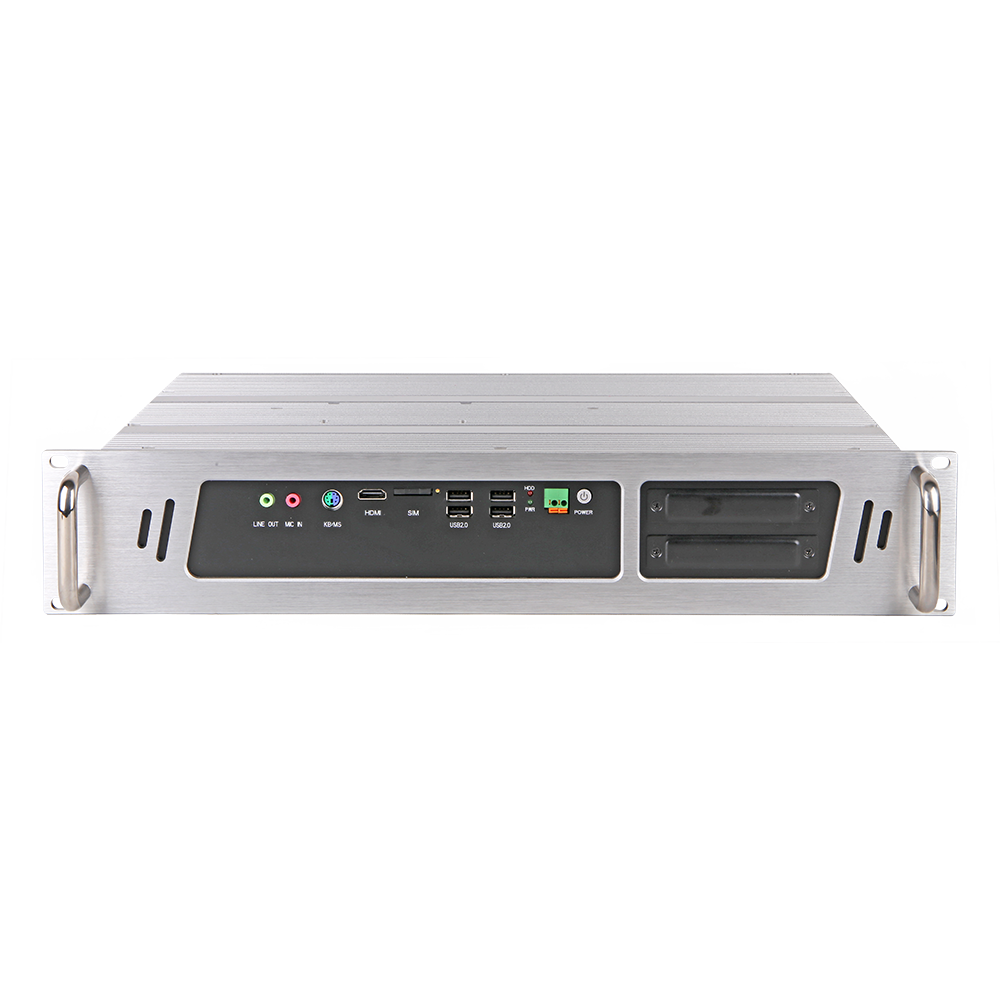

Dimensions: 483mm x 252mm x 88mm (19.02″ x 9.92″ x 3.46″)
Weight: 7.2KG
Box Structure: Aluminum alloy box
Box color: Silver
Mounting: Rack-mount
Input Voltage: AC 90-264V
Support: Windows 7, Windows 7 Embedded, Windows 10, Ubuntu
Work Temperature: -20~60°C -20 ~ 60°C (-4℉~140℉) (Wide temperature SSD)；0 ~ 45°C (32℉~113℉) (General temperature HDD/SSD)
Storage Temperature: -40~80°C (-40℉~176℉)
Relative Humidity: 5~95% (Non-condensation)
Vibration: SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis
Shock: SSD applied: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC: CE/FCC Class A
Safety Certification: CCC
