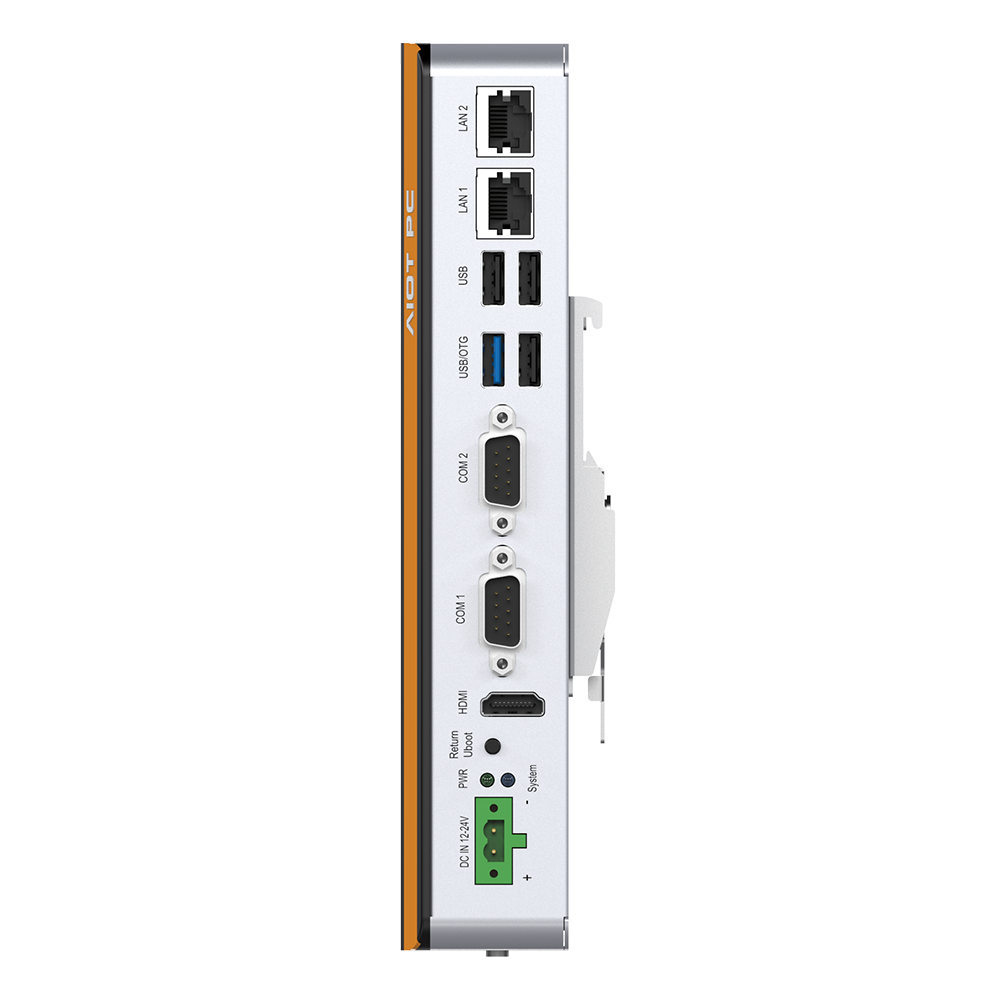

LAN: 1×10/100/1000Mbps Ethernet, 1×10/100/1000Mbps RJ45 Ethernet Interface (optional), Onboard Wi-Fi, supports 2.4G Wi-Fi, Wi-Fi 802.11b/g/n, Bluetooth 5.0
USB: 3×USB 3.0, 1×USB 2.0
COM: 3×RS232 (DB9), ttyXRUSB1~ ttyXRUSB3; COM1/2 can set RS485, COM1 default RS485, COM2 default RS232
Audio: 2×3.5mm phone jack speaker interface (8Ω, 6W)
OTG: 1×USB 3.0
Key: 1×Return
HDMI: 1×HDMI, supports 4K 60Hz display and HDCP 1.4/2.2
Dimensions: 215mm × 147mm × 39.8mm
Weight: 1.66Kg
Box Structure: Aluminum-magnesium alloy box, Fanless

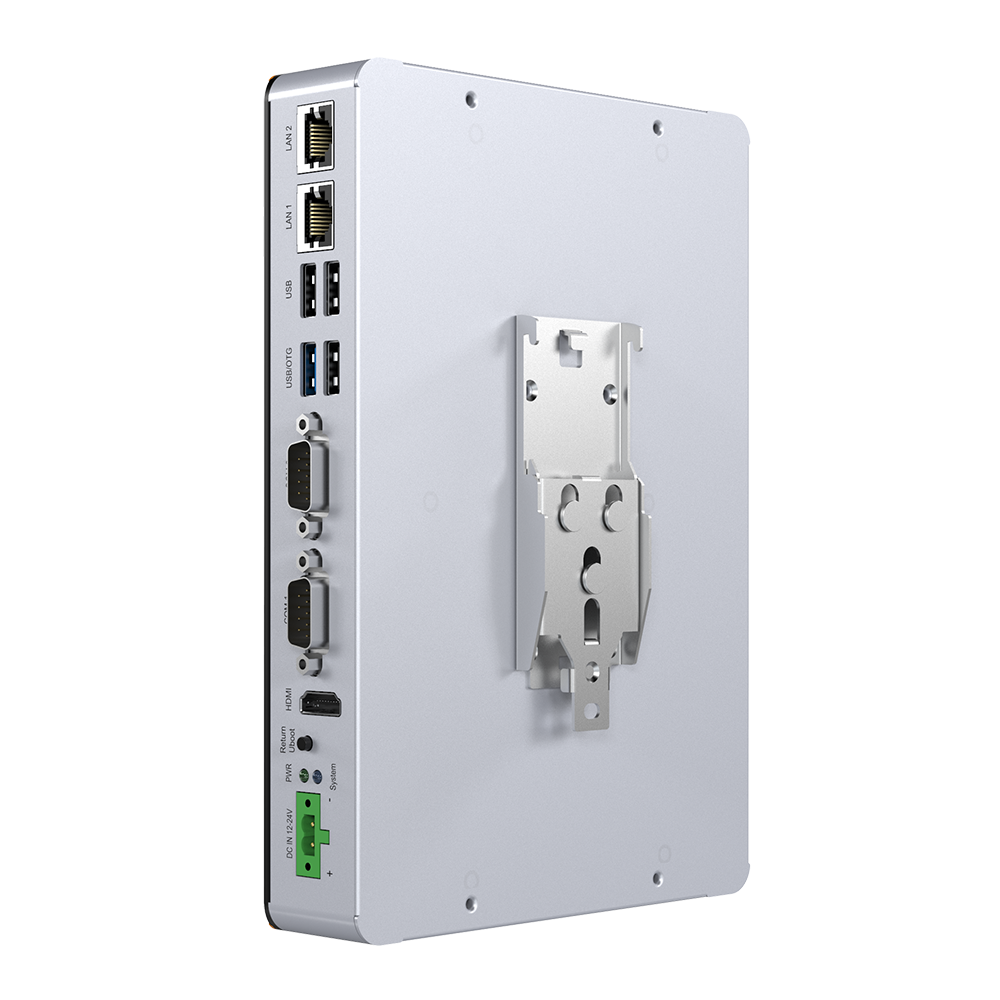

Mounting: Wall-mounted
Input Voltage: DC 12V~24V
OS: Android 7.1.2
Work Temperature: -20ºC~ 70ºC
Storage Temperature: -40ºC ~ 80ºC
EMC: CE/FCC Class B
Vibration: SSD applied: 1.5 Grms, IEC 60068-2-64, random, 5~500 Hz, 1 hr/axis
Shock: SSD applied: 10 G, IEC 60068-2-64, Half sine wave, 11ms duration
