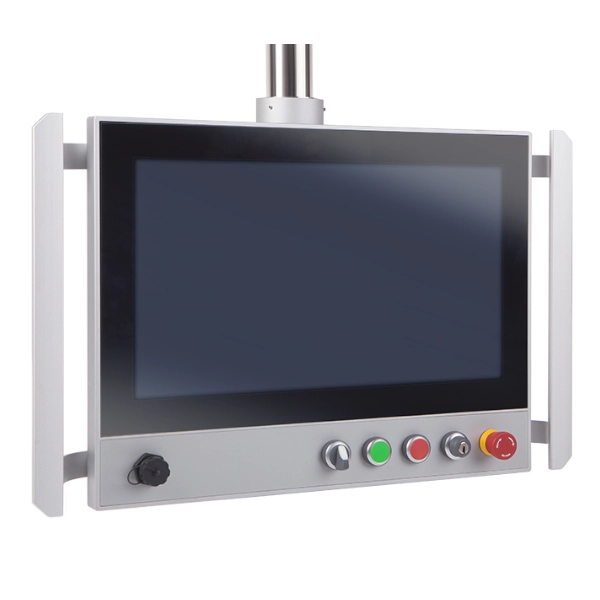

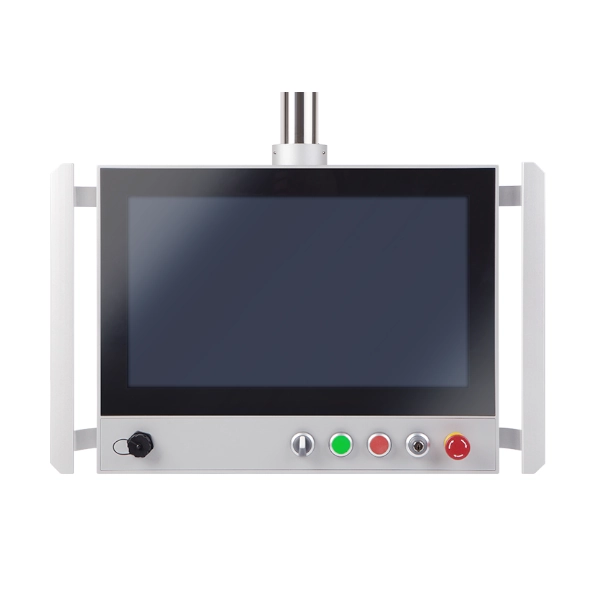

iTPC-H1212 | 12.1″ Panel PC
Projected capacitive touch, size of 10.4, 12.1", 15", 17", 18.5", 19" and 21.5", support Intel® 6-11th Gen. Core™ i3/i5/i7, and Celeron® J6412, J1900, 8DI+8DO
Dustproof/Waterproof: Full IP65 protection
Touch Screen: Capacitive for smooth, responsive interaction
High-Quality Controls: Durable operation keys and indication switches
Connectors: Compatible with various cantilever profiles
Installation & Maintenance: Easy on-site setup with visible core components
Customization: Front panel keys can feature custom logos, text, and colors
Expansion Options: Flexible USB, host switch, Wi-Fi, and other custom functions
LAN: 2×Intel 1000Mbps RJ-45 Ethernet interface
USB: 4 x USB3.0/2.0/1.1
COM: 2 x RS-232/RS-485 with surge protection, RS485 supports automatic flow control
Audio: Optional
LCD Size: 21.5″ Full HD TFT
Resolution: 1920 x 1080
Type: Capacitive touch screen
Colors: 16.7MB
Active Area: 476.64mm x 268.11mm
Backlight: LED
Controller Interface: USB
Multi-touch: 10 points
Dimensions: 664mm x 411mm x 139.5mm
Weight: 15.30 KG
Keyboard tray: Optional
Pensile Direction: Optional up or down
Operation Button: USB, rotatable switch, push button (green, red), key switch, emergency stop switch
Input Voltage: DC 12-24V, supports reverse polarity protection, overvoltage protection, overcurrent protection
OS: Windows 7, Windows 8, Windows 10, Linux
Working Temperature: -10 ~ 60°C (14~140℉)
Storage Temperature: -20 ~ 80℃ (-4 ~ 176℉)
Relative Humidity: 5~95% (Non-condensation)
Vibration: 5~500Hz, 1.5Grms with SSD, following IEC 60068-2-64
Shock: 20G peak acceleration (11ms duration), following IEC 60068-2-27
EMC: CE/FCC Class B
Protection: Full IP65
