Touch Screen: Capacitive
Operation Keys & Indication Switch: High quality
Connectors: Support various cantilever profiles
Installation & Maintenance: Simple, core visible for easy servicing
Front Panel: Easy connection to the controller
Customization: LOGO, text, color options for front panel keys
Expansion: Flexible USB, host switch, WIFI, and custom functions
Communication Interface: USB 2.0 input
Size: 15″ XGA TFT
Resolution: 1024 x 768
Luminance: 420cd/m²
Contrast Ratio: 800:1
Type: Capacitive
Multi-touch: 10 points
Dimensions: 507mm x 386mm x 139.5mm
Weight: 8.3KG
Keyboard Tray: Optional
Pensile Direction: Optional (up or down)

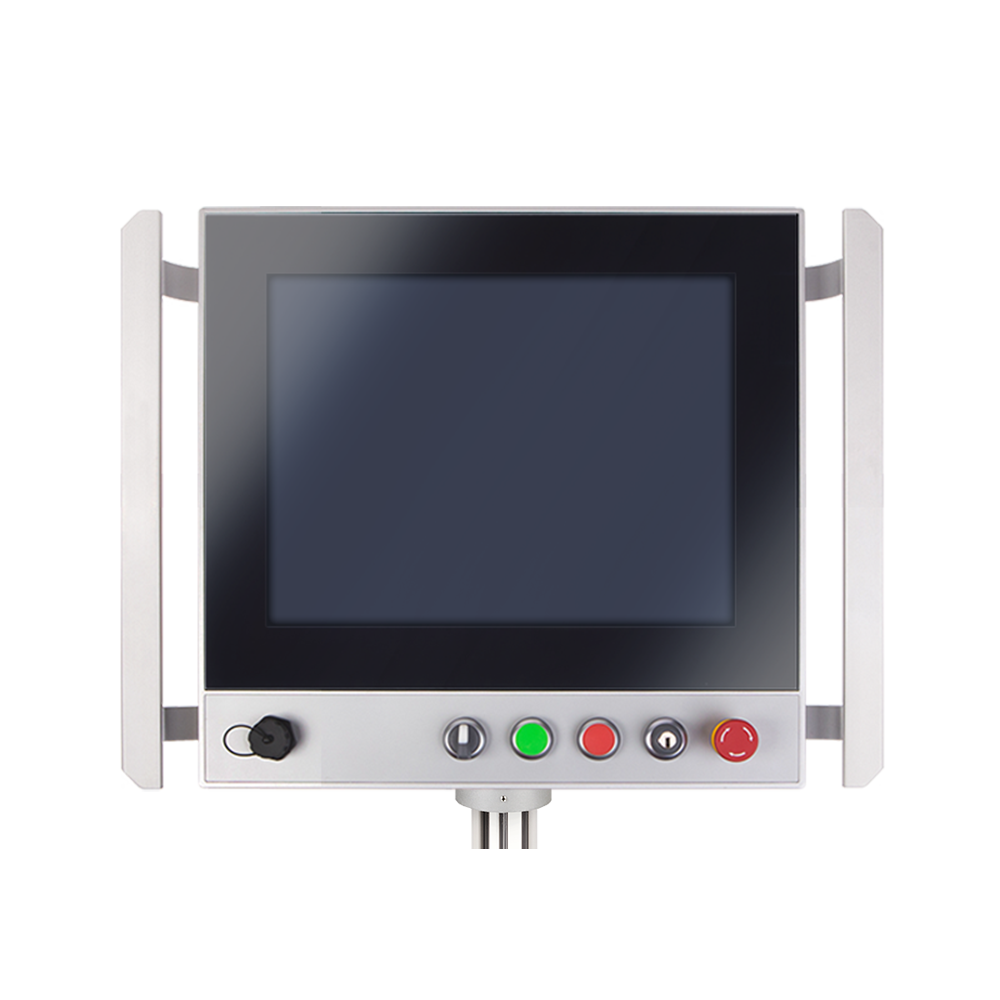

Operation Button: USB, rotatable switch, push button (green, red), key switch, emergency stop switch
Fixed Stand: Compatible with full series
Handle: Standard
Input Voltage: DC 12-24V (with protections)
Operating Temperature: -10 ~ 60°C (14~140℉)
Storage Temperature: -20 ~ 80°C (-4 ~ 176℉)
Relative Humidity: 5~95% (Non-condensation)
Vibration: 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock: 10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
EMC: CE/FCC Class A
