Durable Design: Aluminum-magnesium alloy body and IP65-rated front panel for protection.
Clear Display: 10.1″ TFT screen, 1280×800 resolution, capacitive touch.
Powerful Performance: Supports Intel® Celeron J3455, J1900, i5-7200U.
Flexible Connectivity: 2 x RS-232, optional RS-485, surge protection.
Versatile Mounting: Fanless design with VESA and panel mounting options.
Comprehensive I/O: 2 x GLAN, 4 x USB, 2 x COM, DC-in, HDMI.
LAN: Intel i211 or i225 Gbe LAN controller (2 x RJ-45)
USB: 1 x USB 3.0, 3 x USB 2.0
COM: 2 x RS-232, optional RS-485 (surge protection)

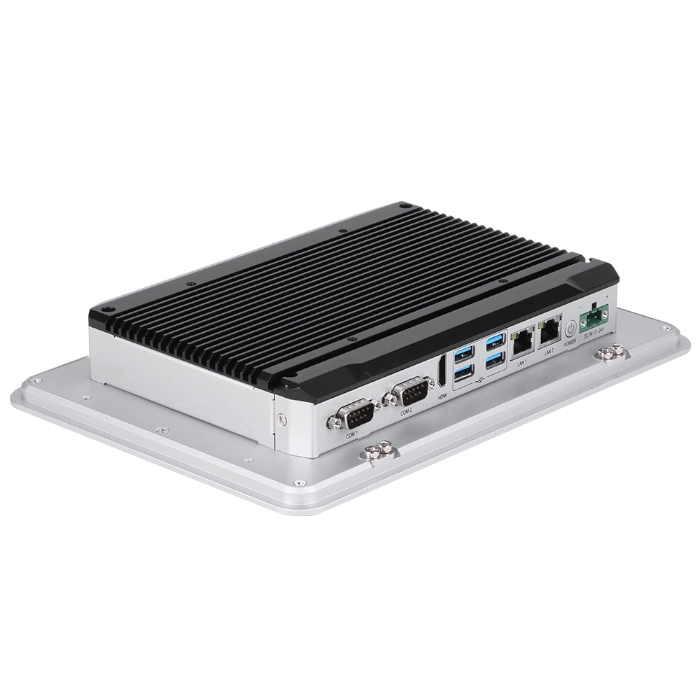

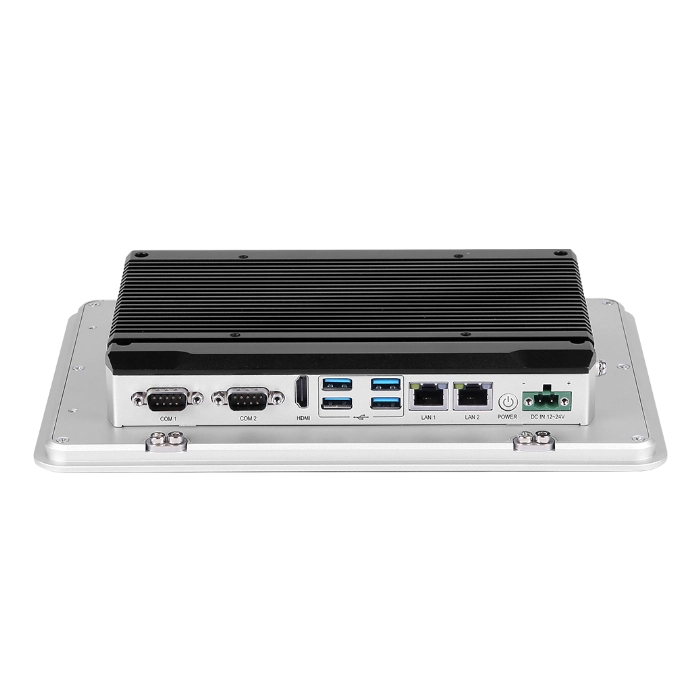

Rear I/O: 2 x GLAN / 4 x USB / 2 x COM / DC-in / HDMI
Size: 10.1″ TFT
Type: Multi-point capacitive touch
Resolution: 1280 x 800
Colors: 16.7MB
Active Area: 216.96mm x 135.6mm
Backlight: LED
Controller Interface: USB
Driver Support: Windows 7, 8, 10, Linux
Multi-touch: 10 points (Windows)
Dimensions: 269.16mm x 187.8mm x 45mm
Cut Out Size: 261mm x 180mm
Weight: 1.92kg
Input Voltage: 12-24VDC
OS: Windows 7, 8, 10, Linux
Work Temperature: -10 ~ 50°C
Storage Temperature: -20 ~ 70°C
Relative Humidity: 10-95% RH (Non-condensing)
Vibration: Operating Random Vibration 5500Hz, 1.5Grms, with SSD
Shock: 10G peak acceleration (11ms duration)
Water-proof: Front panel IP65
