Durable Construction: Aluminum-magnesium alloy box with IP65-rated front panel for protection.

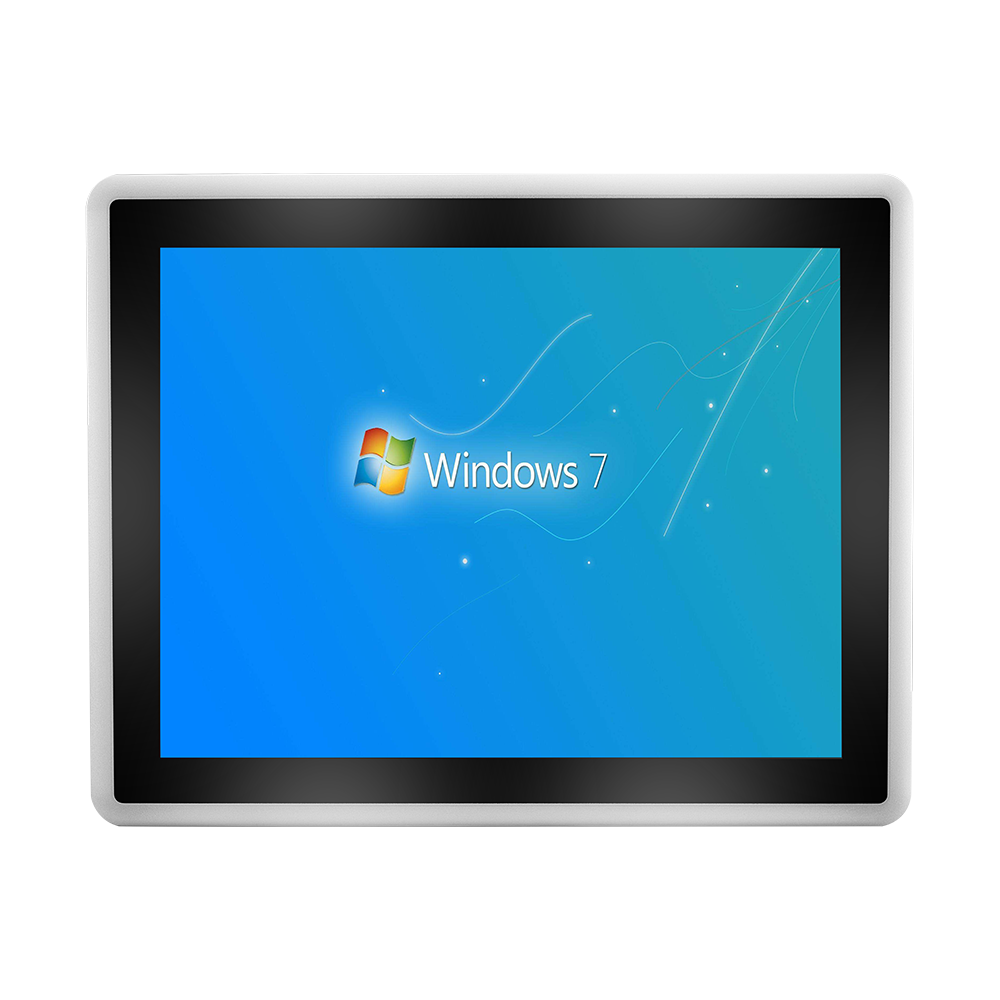

Clear Display: 15″ TFT screen, 1024 x 768 resolution, capacitive touch.
Powerful Performance: Supports Intel® Celeron J3455, J1900, i5-7200U.
Flexible Connectivity: 2 x RS-232, optional RS-485 with surge protection.
Versatile Mounting: Fanless design with VESA and panel mount options.
Comprehensive I/O: 2 x GLAN, 4 x USB, 2 x COM, DC-in, HDMI.
LAN: 2 x Intel i225/i211 Gbe LAN controller, RJ-45
USB: 1 x USB3.0, 3 x USB2.0
COM: 2 x RS-232, optional RS-485, interface with surge protection

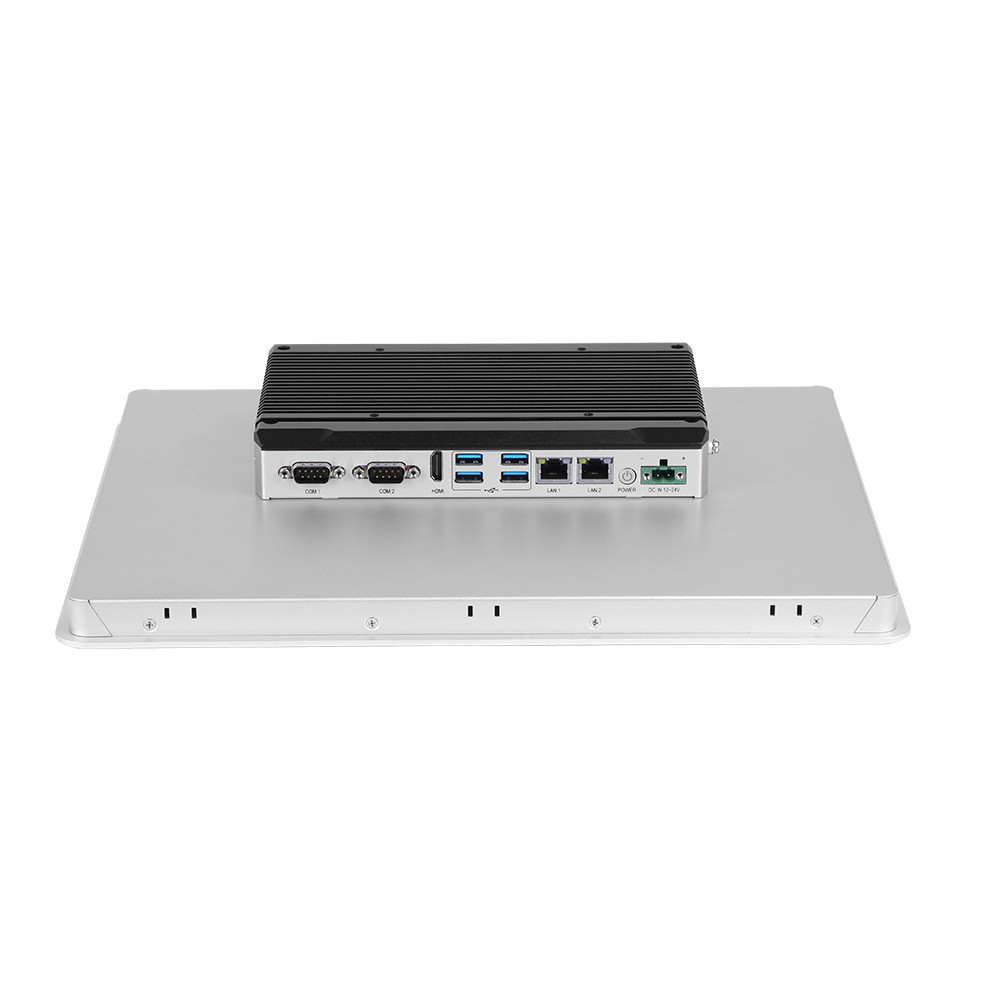

Rear I/O: 2 x GLAN / 4 x USB / 2 x COM / DC-in / HDMI
Size: 15″ XGA TFT
Resolution: 1024 x 768
Colors: 16.7M
Backlight: LED
Viewing Angle: (L) 80 / (R) 80 / (T) 60 / (B) 80
Type: Multi-point capacitive touch
Controller Interface: USB
Driver Support: Windows 7, Windows 8, Windows 10, Linux
Multi-touch: 10 points
Dimensions: 368mm x 292mm x 55mm (W x H x D)
Cut-out Size: 358mm x 282mm (W x H)
Weight: 3.98kg (8.7lb)
Input Voltage: 12-24VDC
OS: Windows 7, Windows 8, Windows 10, Linux
Work Temperature: -10 ~ 50°C (-14 ~ 122°F)
Storage Temperature: -20 ~ 70°C (-4 ~ 158°F)
Relative Humidity: 10~95% RH @ 40°C, Non-condensing
Vibration: Operating Random Vibration Test 5~500Hz, 1.5Grms @ with SSD, IEC 60068-2-64
Shock: Operating 10G peak acceleration (11ms duration), IEC 60068-2-27
Certification: CE/FCC Class A
Front Panel: IP65
