Full IP65: Dustproof and waterproof.
Capacitive Touch Screen: Responsive and durable.
High-quality Key and Switches: Reliable operation with clear indication.
Versatile Connectors: Support various cantilever profiles.
Easy Installation & Maintenance: Core components are visible for quick servicing.

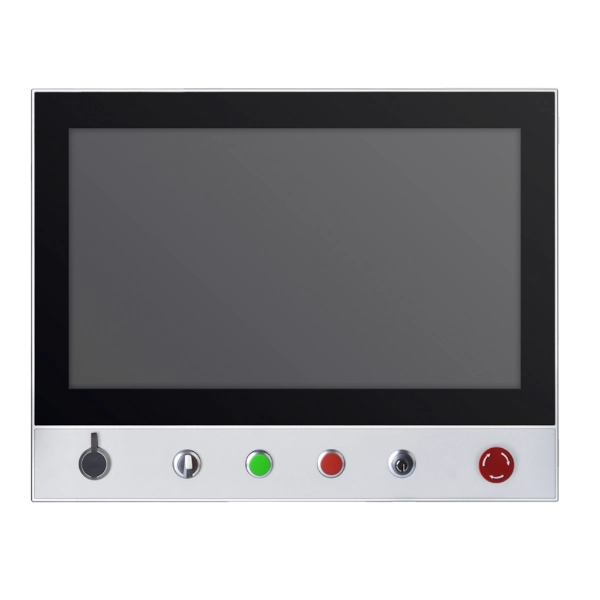

Customizable Front Panel: Keys can be personalized with logos, text, and color.
Flexible Expansion: Supports USB, host switch, WiFi, and custom functions.
Communication Interface: USB 2.0 input.
LCD Size: 18.5″ HD TFT
Resolution: 1366 x 768
Backlight: LED
Type: Capacitive touch screen
Multi-touch: 10 points
Dimensions: 593mm x 372mm x 139.5mm
Weight: 10.24 KG
Keyboard Tray: Optional
Pensile Direction: Optional up or down
Operation Button: Optional (USB, rotatable switch, push button, key switch, emergency stop switch)
Fixed Stand of Cantilever: Suitable for full series
Handle of Operation Panel: Standard
Input Voltage: DC 12-24V (reverse polarity, overvoltage, and overcurrent protection)
Work Temperature: -10 ~ 60°C (14 ~ 140°F)
Storage Temperature: -20 ~ 80°C (-4 ~ 176°F)
Humidity: 5~95% (Non-condensation)
Vibration: 1.5 Grms, IEC 60068-2-64, random 5 ~ 500 Hz
Shock: 10 G, IEC 60068-2-27, Half-sine wave 11ms duration
Compliance: CE/FCC Class A
