Durable Construction: Aluminum-magnesium alloy box with IP65-rated front panel for protection.
Clear Display: 15.6″ TFT, 1920 x 1080 resolution, capacitive touch.
Powerful Performance: Supports Intel® Celeron J3455, J1900, i5-7200U.
Flexible Connectivity: 2 x RS-232, optional RS-485, surge protection.
Versatile Mounting: Fanless design with VESA and panel mount options.
Comprehensive I/O: 2 x GLAN, 4 x USB, 2 x COM, DC-in, HDMI.
LAN: 2 x Intel i225/i211 Gbe LAN, RJ-45
USB: 1 x USB3.0, 3 x USB2.0
COM: 2 x RS-232, optional RS-485, surge protection

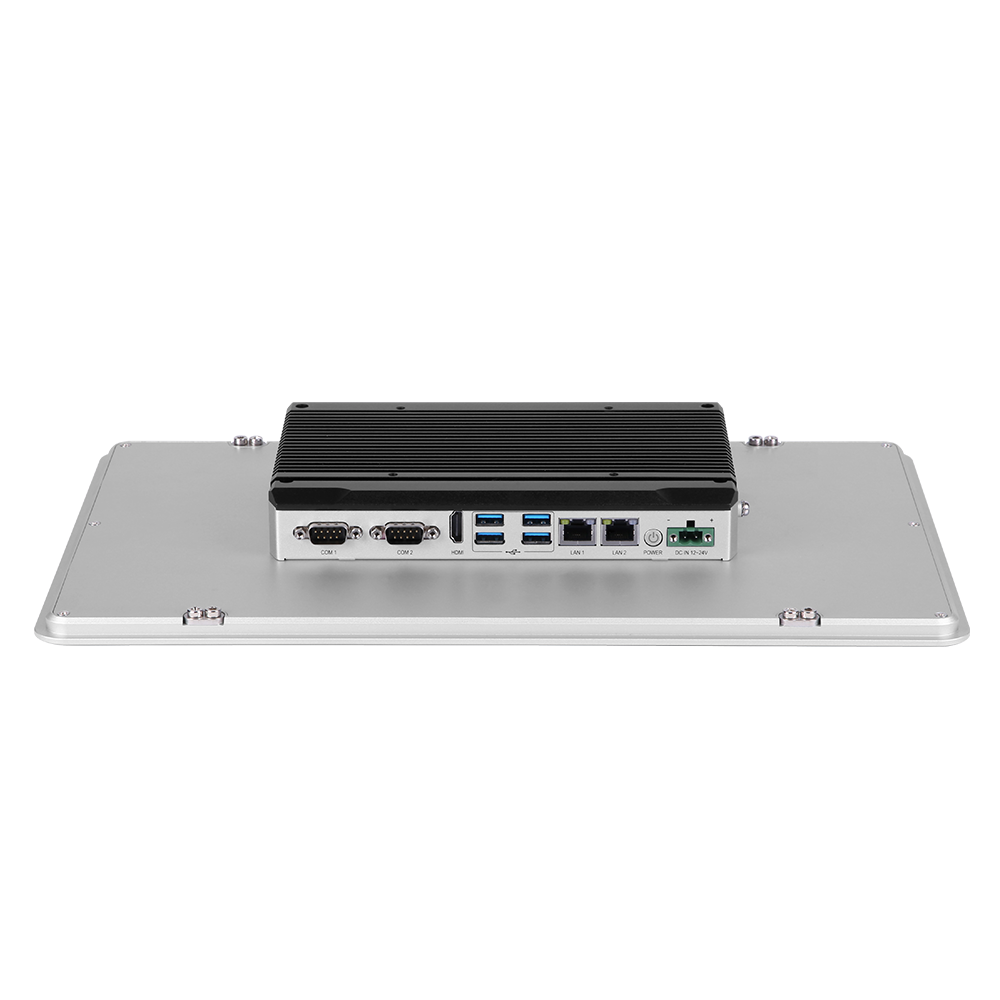

Rear I/O: 2 x GLAN, 4 x USB, 2 x COM, DC-in/HDMI
Size: 15.6″ TFT
Type: Multi-point capacitive
Resolution: 1920 x 1080
Backlight: LED
Viewing Angle: (L) 85 / (R) 85 / (T) 85 / (B) 85
Controller: USB
Driver Support: Windows 7, 8, 10, Linux
Multi-Touch: 10 points
Dimensions: 400.2mm x 257.2mm x 45mm
Cut-out Size: 392mm x 249mm
Weight: 3.65kg
Input Voltage: 12-24VDC
OS: Windows 7, 8, 10, Linux
Work Temperature: -10 ~ 50°C
Storage Temperature: -20 ~ 70°C
Relative Humidity: 10~95% RH at 40ºC, non condensing
Vibration: 550Hz, 1.5 Grms with SSD, IEC 60068-2-6464
Shock: 10G peak, 11ms, IEC 60068-2-27
EMC: CE/FCC Class A
Waterproof: IP65 front panel
