Durable Construction: Aluminum-magnesium alloy box with IP65 front panel protection.

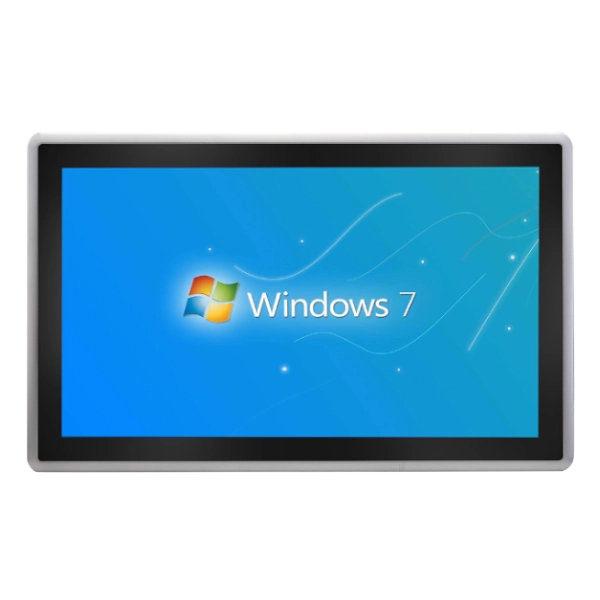

Clear Display: 21.5″ Full HD TFT screen, 1920×1080 resolution, capacitive touch.
Powerful Performance: Supports Intel® Celeron J3455 / J1900 / i5-7200U.
Flexible Connectivity: 2 x RS-232, optional RS-485 with surge protection.

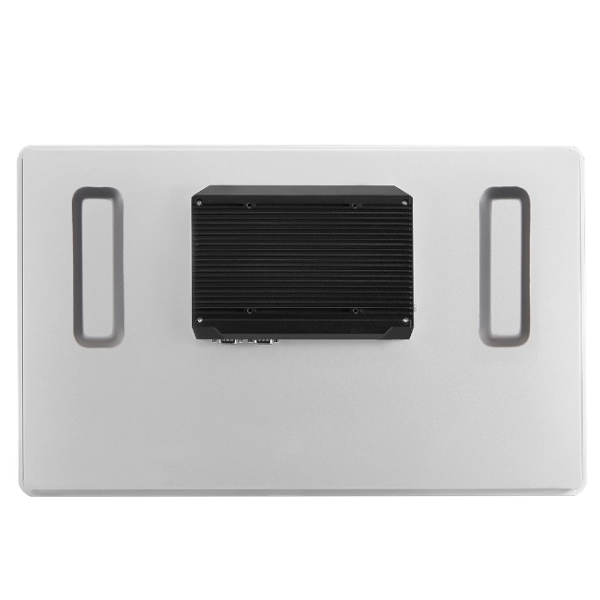

Versatile Mounting: Fanless design with VESA and panel mount options.
Comprehensive I/O: 2 x GLAN, 4 x USB, 2 x COM, DC-in, HDMI.
LAN: Intel i211/i225 Gbe LAN controller
USB: 1 x USB3.0, 3 x USB2.0
COM: 2 x RS-232, optional RS-485 with surge protection

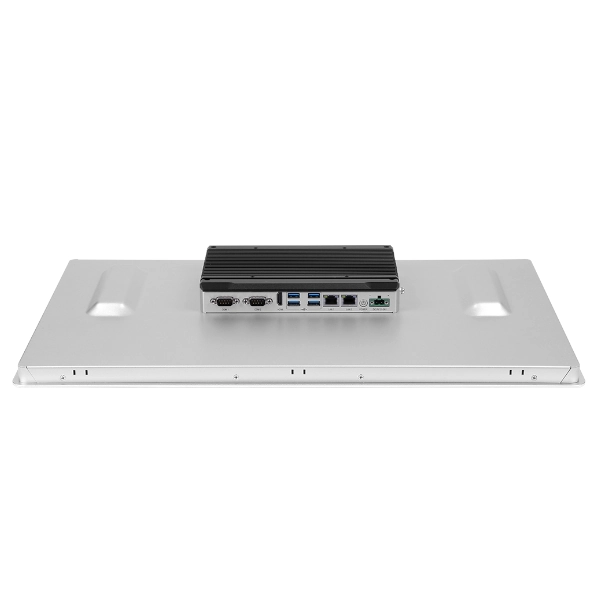

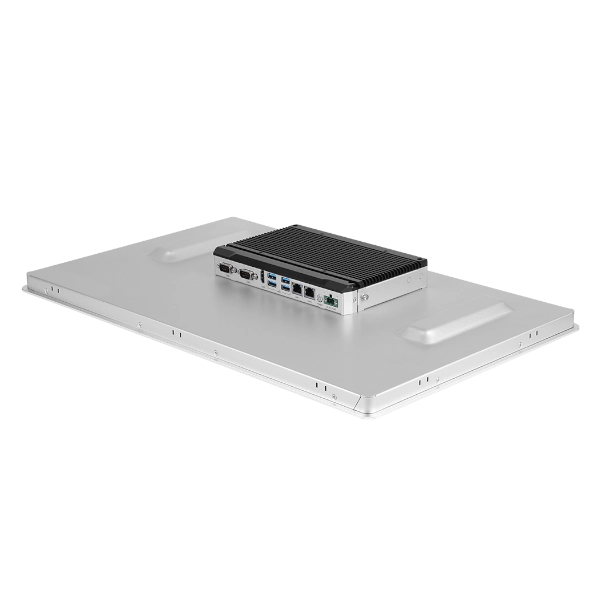

Rear I/O: 2 x GLAN, 4 x USB, 2 x COM, DC-in, HDMI
Size: 21.5″ Full HD TFT
Resolution: 1920 x 1080
Backlight: LED
Viewing Angle: 89°
Type: Multi-point capacitive touch
Controller: USB
Multi-touch: 10 points (Windows system)
Dimensions: 548.8mm x 340.30mm x 55mm
Weight: 5.99kg
Input Voltage: 12-24VDC
OS: Windows 7, Windows 8, Windows 10, Linux
Work Temp: -10 ~ 50°C
Storage Temp: -20 ~ 70°C
Humidity: 10-95% RH at 40°C, non-condensing
Vibration: Operating Random Vibration Test 5~500Hz, 1.5Grms with SSD
Shock: Operating 10G peak acceleration, 11ms duration
EMC Certification: CE/FCC Class A
Front Panel: IP65
