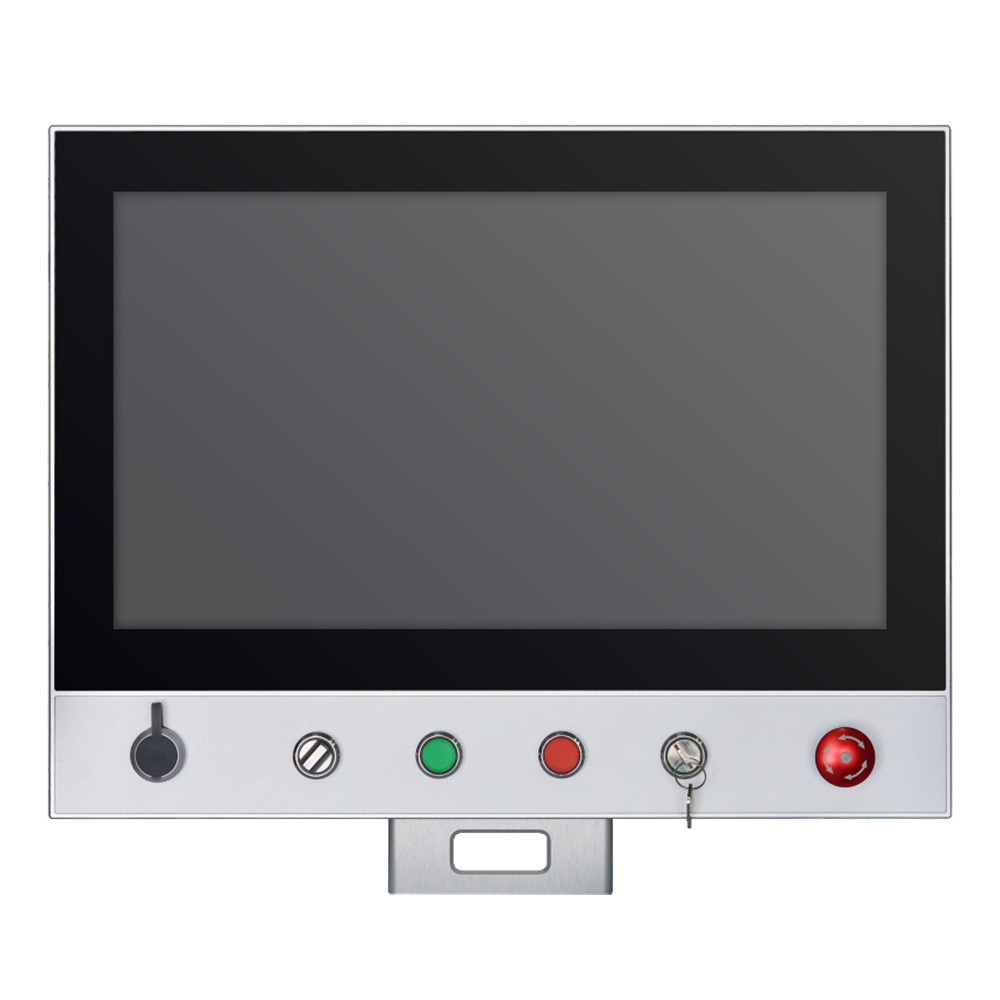

ICP69185-C-L | 18.5″ Painel de Operação

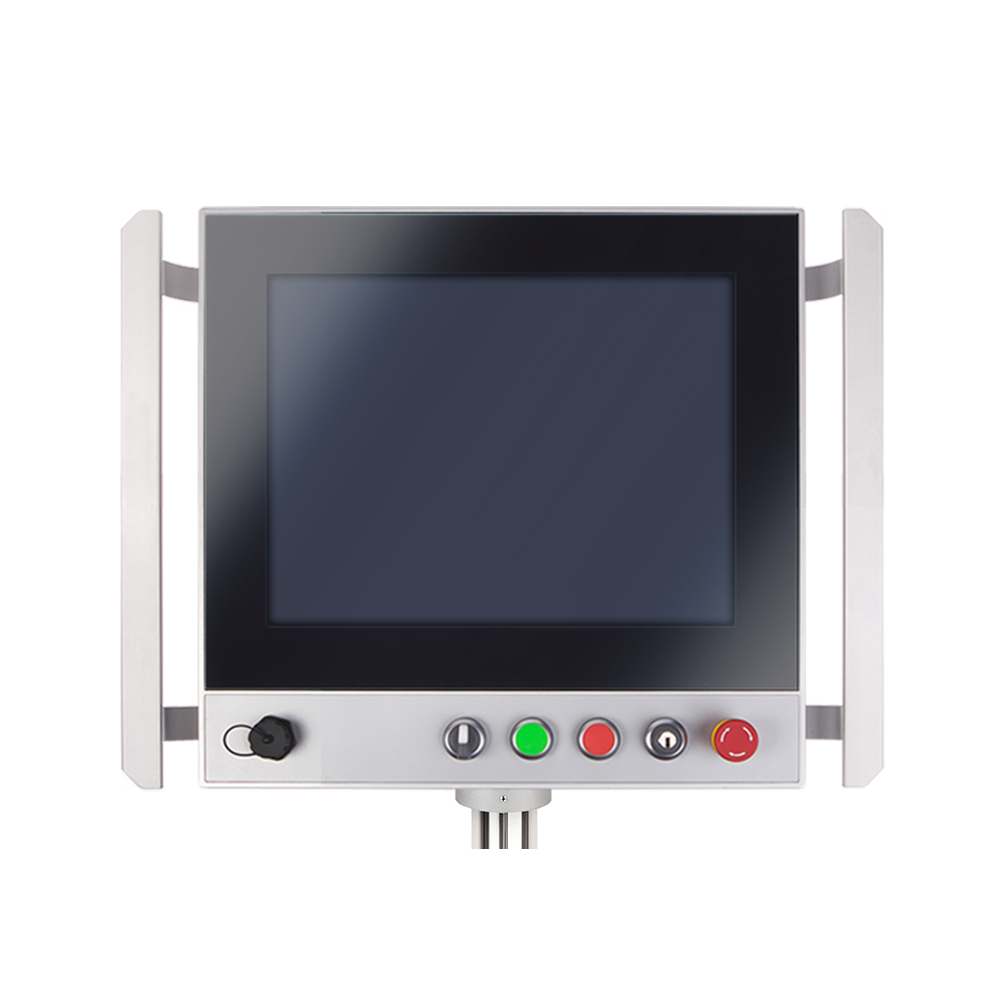

Projected capacitive touch, size of 10.4, 12.1", 15", 17", 18.5", 19" and 21.5", support Intel® 6-11th Gen. Core™ i3/i5/i7, and Celeron® J6412, J1900, 8DI+8DO

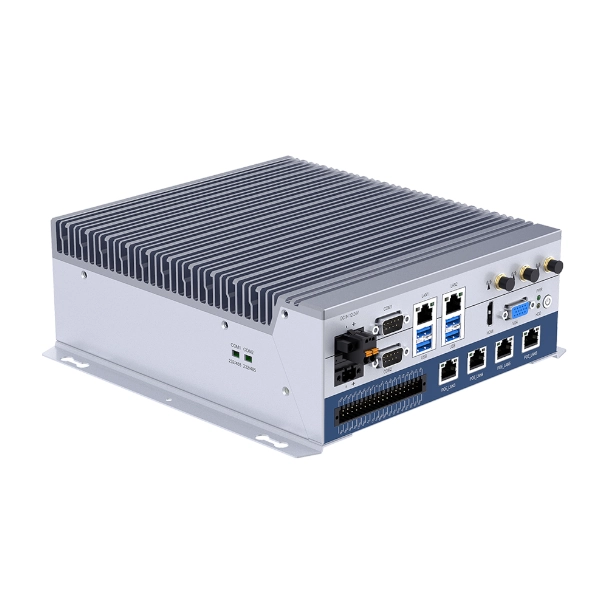

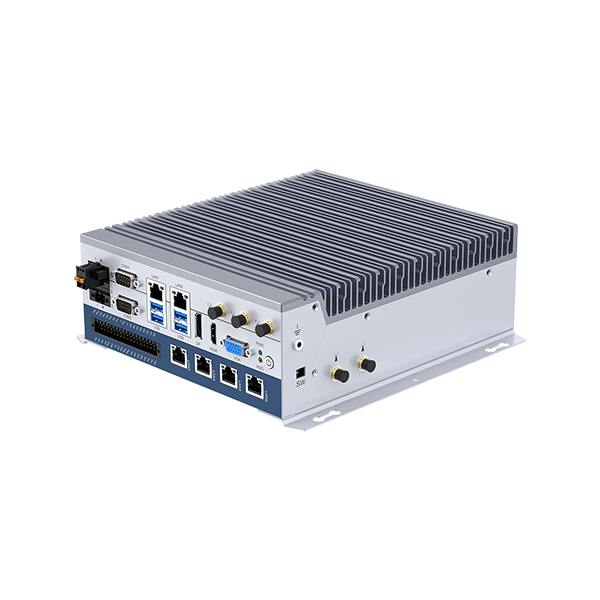

High-Performance Processor: Supports Intel® Core™ 6th/7th/8th Gen i7/i5/i3/Pentium/Celeron, max TDP 65W.
Advanced Networking: 2 x Intel GbE LAN and 4 x Intel GbE PoE LAN controllers.
Versatile I/O: 4 x USB 3.0, USB 2.0 Type A for dongle, and 2 x RS232/RS485 with auto flow control.
Flexible Display: VGA, DP, and HDMI ports with dual display support.
Expansion Options: 1 x mini PCIe for WiFi/3G/4G modules.
Custom Control: 4 x PWM light power with external triggers and 16 x isolated DIO (8DI/8DO).
Reliable Power: DC12~24V with full protections.
Wide Temperature Range: Operates between -20 ~ 60°C.
CPU: Intel® Core™ 6/7/8th Gen i7/i5/i3/Pentium/Celeron LGA1151, max TDP 35W
Memory: 2 x SO-DIMM DDR4-2400MHz, up to 32GB
Storage Medium: 1 x mSATA bay; 1 x M.2 (B Key, Type 2280) SATA support
BIOS: AMI UEFI 64Mbit
Expansion MiniPCIe：1 x Full-size PCIe Mini slot with SIM card holder (with USB signal)
LAN: 2 x Intel GbE LAN controller
USB: 4 x USB3.0, 1 x USB2.0 Type A (dongle)
COM: 2 x COM (DB-9), RS232/RS485 selectable with auto flow control
DI/DO: 8 x DI (2500 Vrms isolation), 8 x DO (Imax 0.5A, isolated)
Light Source Control: 4 x PWM light power with trigger input (Imax 1A)
PoE: 4 x Intel GbE PoE LAN (max 15W/channel)
DP: Up to 3840 x 2160@60Hz
VGA: Up to 1920 x 1080@60Hz
HDMI: Up to 3840 x 2160@60Hz
Dimensions: (L)230mm x (W)200mm x (H)78mm
Weight: 3Kg
Structure: Aluminum-magnesium alloy box, fanless
Mounting: Wall-mounted
Input Voltage: DC12~24V ±10%, full protection (requires DC24V for light control)
Support: Windows 10 IoT, Linux Ubuntu, CentOS, Debian
Operating Temperature: -20 ~ 60°C (-4 ~ 140°F) with air flow
Storage Temperature: -40 ~ 80°C (-40 ~ 176°F) with air flow
Humidity: 5~95% (non-condensing)
Vibration: 5~500Hz, 1.5Grms@with SSD, Follow IEC60068-2-64
Shock: 20G peak acceleration (11ms)
EMC: CE/FCC Class A
WatchDog：1~255 levels programmable
